30 Minute MACD Crossed Below Signal

Table of Contents

Understanding the 30 Minute MACD Crossed Below Signal Alert

The Moving Average Convergence Divergence (MACD) is a popular and versatile technical indicator used in stock trading and financial markets to analyze trends, momentum, and potential buy or sell signals. The MACD consists of three main components:

MACD Line (Fast Line): This is the difference between the 12-period Exponential Moving Average (EMA) and the 26-period EMA. The MACD Line represents the short-term momentum of a security.

Signal Line (Slow Line): The Signal Line is a 9-period EMA of the MACD Line. It acts as a smoothing mechanism for the MACD Line and is often used as a trigger for buy or sell signals.

MACD Histogram: The MACD Histogram is the visual representation of the difference between the MACD Line and the Signal Line. It helps traders identify the strength and direction of the momentum.

Here's how traders interpret and use the MACD:

MACD Crossovers:

  • When the MACD Line crosses below the Signal Line, it generates a bearish signal, suggesting potential downward momentum.

Histogram Analysis:

  • The histogram's height represents the difference between the MACD Line and the Signal Line. Positive histogram values indicate bullish momentum, while negative values indicate bearish momentum.


  • Divergence occurs when the price of the security moves in the opposite direction of the MACD. Bearish divergence happens when the price makes higher highs, but the MACD makes lower highs, suggesting a potential reversal to the downside.

Overbought and Oversold Conditions:

  • Some traders use the MACD to identify overbought or oversold conditions. Extremely high or low MACD values may suggest that a security is overextended and due for a potential reversal.

These alerts implement the traditional MACD (Moving Average Convergence Divergence) formula. You can get a notification as soon as the MACD line crosses above or below the zero line or the signal line. You can select the timeframe. These alerts are based on the standard 26, 12, and 9 period EMAs. These alerts report as soon as the value crosses, without waiting for the end of the candle.

Note: because the MACD is based on the EMA (exponential moving average) formula, it is not deterministic. Different charting packages will give slightly different values for the formula. If you add more history to your chart, it might also change the result. These values are generally similar, but they won't be exactly the same.

Default Settings

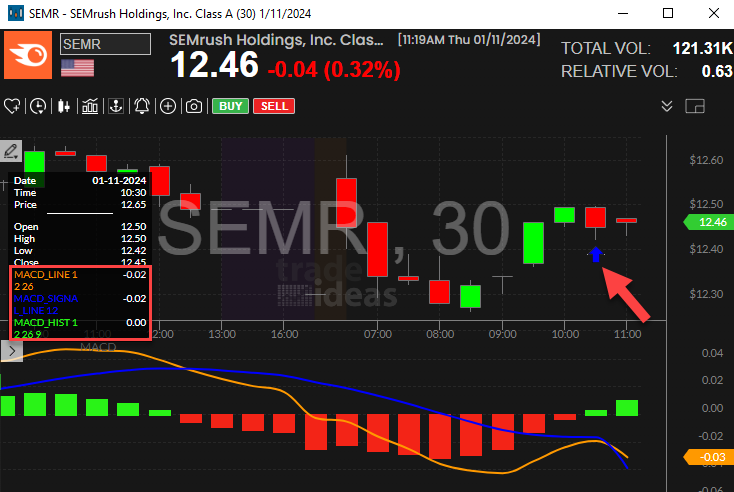

By default, this alert is triggered when the MACD crosses below the signal line on a 30 minute timeframe. To align with each alert, it's essential to utilize the corresponding time frame on the chart. For instance, this alert is visualized on the 30-minute candlestick chart.

Stock with 30 Minute MACD Crossed Below Signal Alert

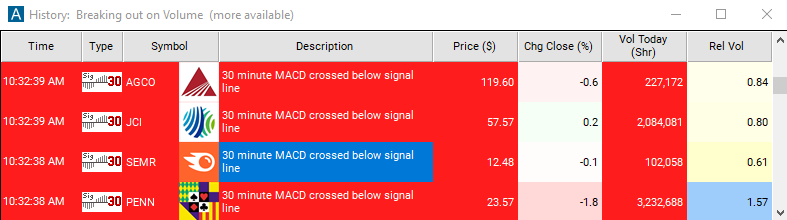

Scan with 30 Minute MACD Crossed Below Signal Alert

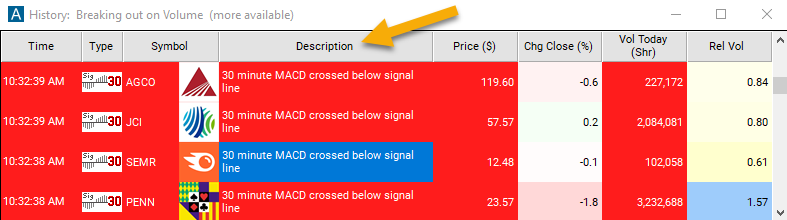

Description Column

The description column of this scan will display "30 Minute MACD Crossed Below Signal Line", providing you with a clear indication of the specific alert that has been triggered.

30 Minute MACD Crossed Below Signal Description

Alert Info for 30 Minute MACD Crossed Below Signal [MDBS30]
