30 Minute Consolidation Breakdown

Table of Contents

Understanding the 30 Minute Consolidation Breakdown Alert

This alert describes a consolidation breakdown pattern and describes the same general pattern as the channel breakdown alert. However, this alert uses more traditional methods of analysis, and may be easier to see on a stock chart. For one thing, this alert works on one specific time frame, where the channel breakdown alert automatically looks at a wide range of timeframes. Also, this alert pays more attention to time, and very little attention to volume. Finally, this alert does not require any confirmation; a single print can create an alert.

To see this alert clearly, configure your stock chart to show candlesticks. And show exactly 41 periods in the chart. This pattern will be visible on other charts, but it will be easiest to spot on a chart configured in this way.

Our definition of a consolidation removes any stock with empty candles. If a stock hasn’t traded at all in some time, that does not count as a consolidation pattern. Each candle in the consolidation must contain at least one print.

Default Settings

By default, the 30 Minute Consolidation Breakdown alert will appear when the stock price moves down outside of the range of the consolidation pattern. If the price continues to move in the same direction, and it moves quickly enough and far enough, we will report additional alerts.

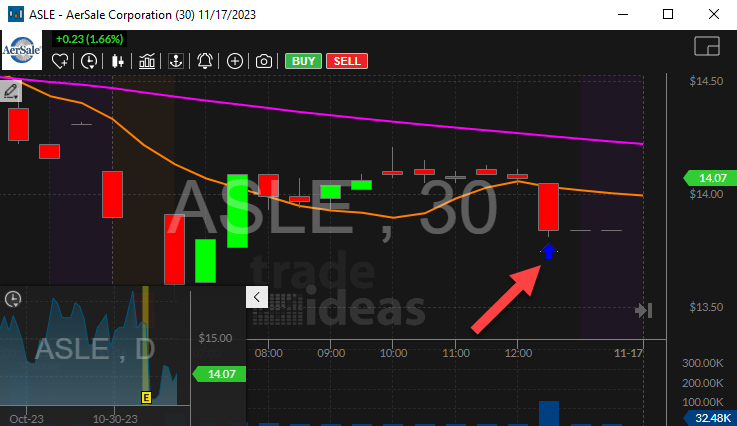

Stock with 30 Minute Consolidation Breakdown

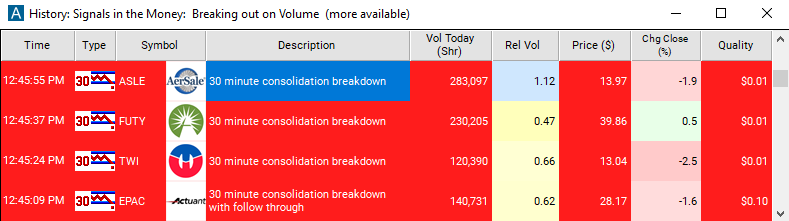

Scan with 30 Minute Consolidation Breakdown Alert

Custom Settings

For '30 Minute Consolidation Breakdown' alerts, you have the option to use an alert specific filter. This filter is located immediately to the right of the corresponding alert and is always optional. You can decide to leave it blank if you want to receive more alerts, or you can fill it in to restrict the number of alerts you receive. This filter allows you to specify the quality of the alert. When you set a higher number for this filter, you are telling the alerts server to display only alerts that meet a higher quality standard, resulting in fewer alerts being shown.

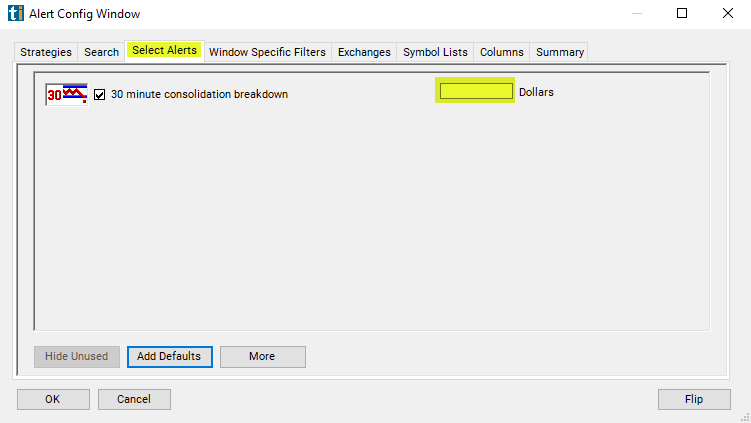

30 Minute Consolidation Breakdown Alert Custom Settings

When setting an alert for '30 Minute Consolidation Breakdown', the user can filter the alert in dollars, showing how far the last print was below the bottom of the consolidation pattern.

Description Column

The description of the alert will give you more details on the alert.

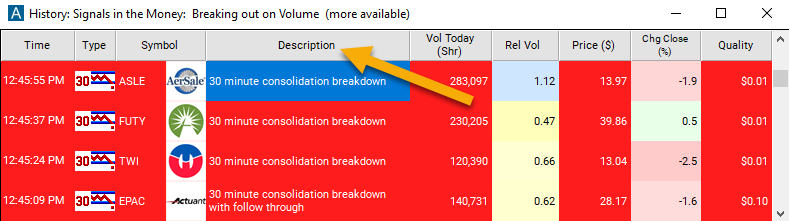

30 Minute Consolidation Breakdown Description

Quality Column

Add the quality column to a scan using the '30 Minute Consolidation Breakdown' alert to see the dollar value difference between the bottom of the channel and the last print at the time of the alert.

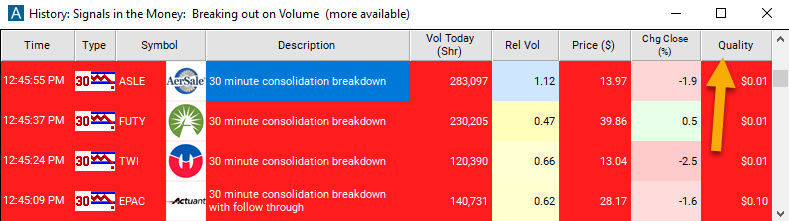

30 Minute Consolidation Breakdown Quality

Alert Info for 30 Minute Consolidation Breakdown [CBD30]
